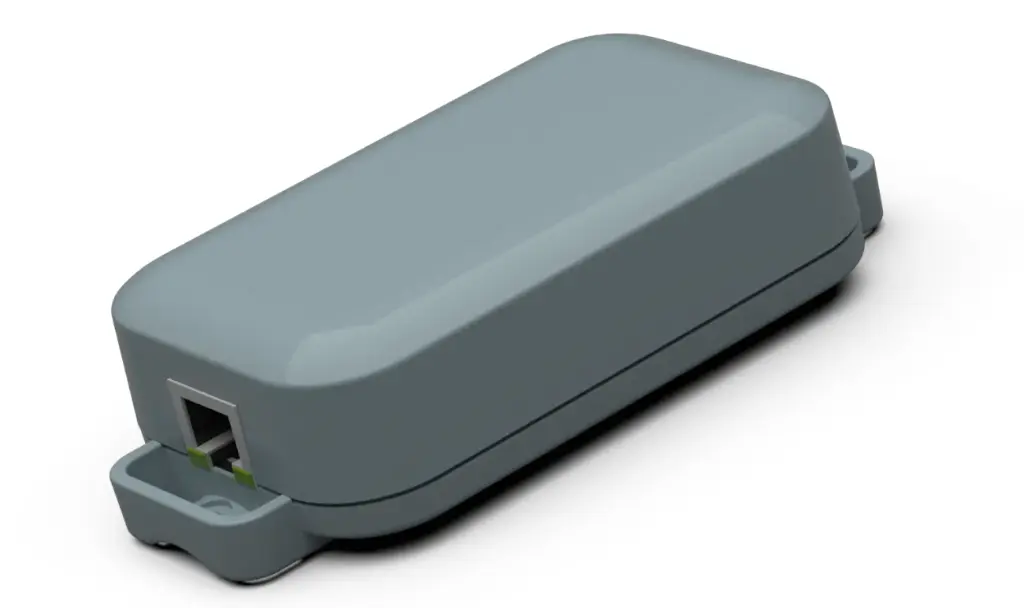

Casambi Lithernet Gateway

Casambi Lithernet Gateway

https://shop.projectnekton.com/web/image/product.template/64/image_1920?unique=7993bae
The “Lithernet – Casambi Gateway” enables Ethernet-based integration of the Casambi Bluetooth system into a cross-system building managment or comprehensive lighting control system – including a variety of innovation options.

640.00 € 640.0 EUR 640.00 € Tax Excluded

640.00 € Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us
InformatieSpecificaties

Informatie

Casambi to Ethernet

  • Scenes called up at Casambi can initiate Ethernet Network commands

Ethernet to Casambi

  • Call scenes
  • Groups / Scenes can be set to a value
  • Broadcast Level can be called
  • Casambi button can be emulated
  • Transfer of movement Sensor States
  • Transfer of brightness sensor values

Gateway Mode

  • Transparent Gateway Mode for all Casambi commands
  • ASCII based UDP packages
  • Device States can be queries

Integrated Protocols

  • Eutrac Netcomposer (UDP)
  • HelvarNet (TCP)
  • ArtNet
  • BacNet/IP
  • UDP ASCII Commands
  • MQTT
  • …

Specificaties

  • Input voltage: Power Over Ethernet
  • Network Speed: 10/100 Mbit
  • Housing: ASA+PC-FR (UL 94 V-0)
  • Dimensions: 121x62x31 mm
