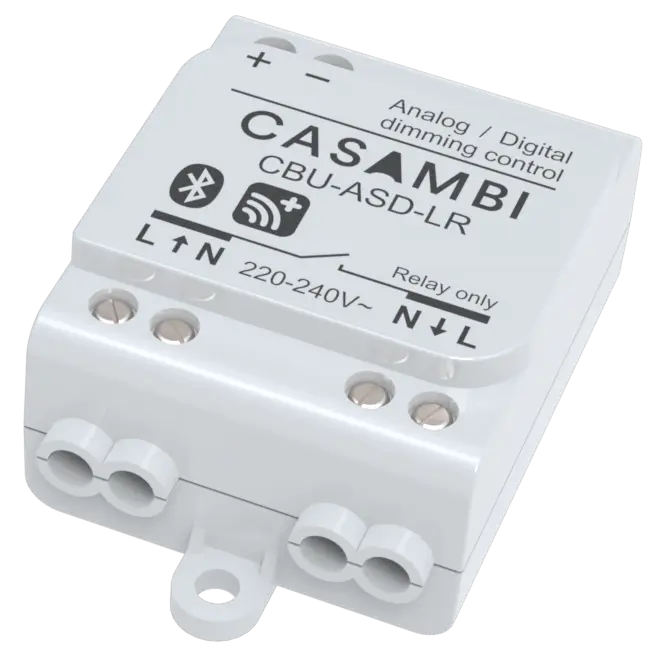

Casambi CBU-ASD LR

CBU-ASD-LR is a wireless, long-range control unit for any type of driver with 0-10V, 1-10V or DALI dimming interface. The CBU-ASD-LR is available with either analog 0-10V (and 1-10V) or digital standalone DALI control interface.

With standalone DALI [1] output, CBU-ASD-LR acts both as a controller and power supply, making it possible to connect directly to an LED driver with DALI interface without needing an external DALI power supply. This so-called standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components to a minimum.

72.00 € 72.0 EUR 72.00 € Tax Excluded

72.00 € Tax Excluded

This combination does not exist.

Add to cart

Specificaties

Input

Voltage range: 220-240 VAC
Frequency: 50 Hz
Max. mains current: 0,6 A

Mains Output

Output relay: SSR on phase line
Voltage range: 220-240 VAC
Frequency: 50 HZ

**Risk of fire. Mains output is only allowed to connect to external relay. It must not be connected to LED driver mains input.

0-10 V Output

Voltage range: 0-10 VDC
Maximum number of drivers connected: 1 pc

DALI Output

Voltage range: 9-12 VDC

Radio transceiver

Operating frequencies: 2402…2480 Mhz
Maximum output power: +8 dBm

Operating conditions

Ambient temperature, ta: -20…+50°C (Iout 0 A)

**ta max 50°C. Derate output current linearly from +40°C…+ 50°C…

Max. case temperature, tc: +75 °C
Storage temperature: -25…+75 °C
Max. relative humidity: 0…80%, non-cond.

Connectors

Wire range, solid & stranded: 0,75-1,5 mm2, 14-22 AWG
Wire strip length: 6-7 mm
Tightening torque: 0,4 Nm

Mechanical data

Dimensions: 56,5 x 35,8 x 22,3 mm
Weight: 48 g
Degree of protection: IP20 (indoor use only)
Protection class: Class II
