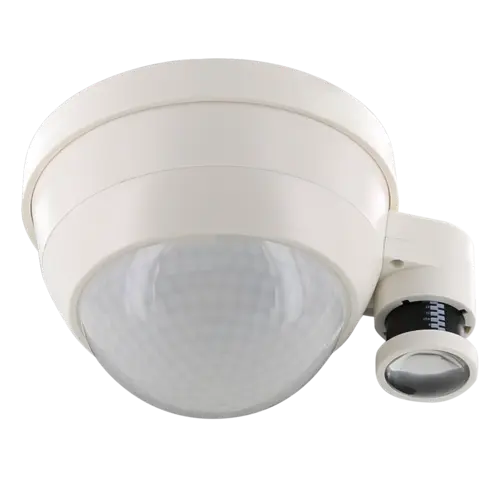

B.E.G. PD4-CAS-GH

Casambi occupancy detector for surface mounting in large mounting heights
Bright LED indication for commissioning
External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
Mixed light measurement with external light sensor
Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app
Extension of the detection area with additional B.E.G. Casambi devices possible
Individual adaption of detection sensitivity for each PIR sensor
Detection area can be restricted with blinds
There are markings to ensure correct alignment during installation
When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements.
Manual switching and dimming via push button possible
Functions adjustable via Casambi app
Application examples:
high-bay warehouse, sports halls/ storage rooms

This combination does not exist.

Aanwijzing	Waarde
Spanning:	230 V AC ±10% 50 Hz
Afmetingen:	Ø 101 x 76 mm
Parameterisatie:	Casambi App
Typisch verbruik:	0.4 W
Detectiebereik:	horizontaal 360° oval (Plafondmontage)
Reikwijdte:	30 m x 19 m
Detectiezone voor dwars langs de melder lopen:	440 m² / 14 m montagehoogte
Montagehoogte min./max./aanbevolen:	5 m / 16 m / 14 m
Beschermingsgraad/-klasse:	IP54 / Klasse II
Slagvastheid:	IK04
Omgevingstemperatuur:	-5 °C tot +45 °C
Behuizing:	UV- bestendig polycarbonaat
Kleur:	wit mat, gelijk RAL9010
:	Kanaal 1 (lichtsturing)
DALI-uitgang:	80 mA (gegarandeerd), 125 mA (max.), uitschakelmechanisme
Ondersteunde bedieningsapparaten:	DT0, DT5, DT6, DT7
Ondersteunde besturingsapparaten:	- (single-master)
Nalooptijd:	1 s – 60 min
Valeur de consigne de luminosité:	1 – 4000 Lux
Gemengd licht meting:	Gemengd licht meting
