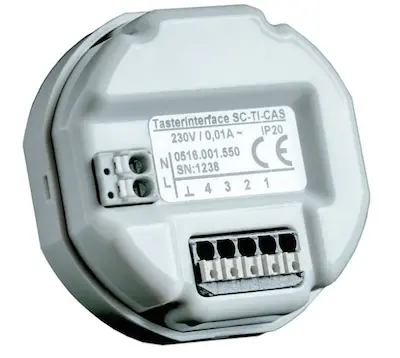

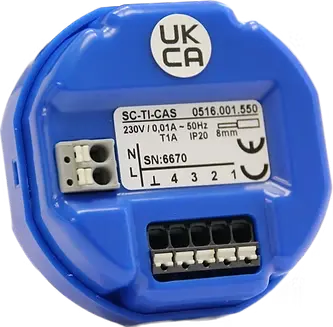

Scemtech SC-TI-CAS

Scemtech SC-TI-CAS

https://shop.projectnekton.com/web/image/product.template/171/image_1920?unique=c178765

This push button interface is supplied with mains voltage and can be installed into a switch back box. The device enables up to 4 retractive normally open switches into the Casambi network. Each of the four buttons can be individually configured.

A 4-way button insert could be used or a combination of single/double push buttons in several flush-mounted boxes.

124.80 € 124.8 EUR 124.80 € Tax Excluded

124.80 € Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us
Specificaties

Specificaties

Power supply

230VAC, 50Hz

Power consumption

max. 10mA

Cable length of button connections

max. 30cm

Ambient temperature

0 - 55°C

Applied standards

DIN EN 60669-2-1
ETSI EN 301 489-1 v.1.9.2
ETSI EN 301 489-17 v.2.2.1
ETSI EN 300 328 v.1.8.1
NOTE!
The connected pushbuttons and their wiring must be insulated for the maximum supply voltage of the push button interface and ensure the appropriate contact protection after proper installation.

Dimensions

Ø 53mm x 21mm
